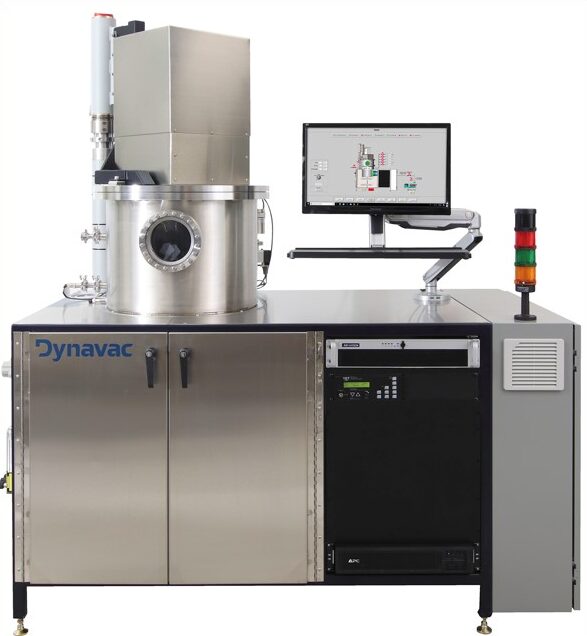

Batch DLC Coating Systems

Diamond Like Carbon (DLC) coating systems for extreme applications

Amorphous diamond-like carbon (DLC) coatings possess a unique combination of physical, mechanical, and chemical properties that make them an ideal choice for demanding optical applications. The Dynavac DLC Coating Series gives you reliable production of high-performance coatings that stand up to extreme environments.

Request Quote

Precise, reliable Plasma Enhanced Chemical Vapor Deposition (PECVD)

The Dynavac DLC Coating Series provides precise, reliable Plasma Enhanced Chemical Vapor Deposition (PECVD) systems for a host of commercial and military applications, from barcode scanner windows and medical instrumentation to infrared scopes. Our DLC deposition systems produce smooth, ultra-resilient films that offer unparalleled protection against wear, abrasion, and impact coupled with outstanding chemical resistance.

Dynavac DLC series highlights

  • 24-inch diameter chamber allows for flexibility in substrate sizes
  • PECVD process using 13.56 MHz excitation and auto-tuning network
  • DLC films with unparalleled protection against wear, abrasion, and environmental conditions
  • Deposition occurs at a constant rate set by plasma parameters with film thickness controlled by deposition time
  • Automatic process with easy-to-use recipes

Features & system configurations

DLC Film Properties & ComplianceVacuum ChamberProcess ControlUser InterfaceUtilities

Characteristic film properties

  • Uniformity: +/- 1% (across 21” plate)
  • Transmission across 8-12 micron range: >88%

Films pass environmental and durability testing per MIL standards:

  • Scotch® tape adherence
  • Eraser abrasion
  • Salt-water immersion
  • Salt fog/spray
  • Cycled temperature/humidity
  • Sand slurry with windshield wipe

Dynavac DLC series applications

  • Commercial and military infrared devices
  • Corrosion resistant coatings
  • Wear resistant coatings
  • Low-friction applications

Resources

Diamond-Like Carbon (DLC) Thin Film Deposition Systems

Dynavac provides precise, reliable PECVD deposition systems for commercial and military infrared applications. Our systems produce films that create a hard, smooth film for hostile-environment protection across an array of optical surfaces, including germanium and silicon optics.
